About Collage Layout Software

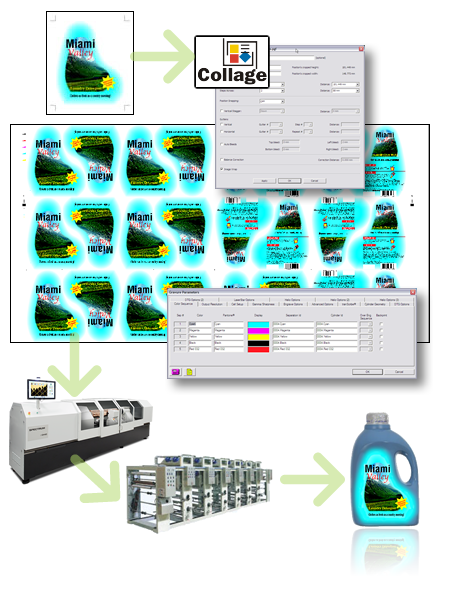

Collage Layout SystemCollage includes all the tools you need to produce layouts for gravure cylinders for packaging or decorative gravure. Today's printers need the advantages of speed, efficiency, flexibility and quality that Collage provides.

Input — Use Tiff, PDF or PostScript image. Work with one-up images or full-up images. Collage uses the industry-standard Xitron Navigator RIP to convert PDF or PostScript images.

Output — Use Collage to create jobs for output to any OHIO or Hell engraver. Only one workflow to learn. With Collage and the HelioMatch function, cylinders engraved on an OHIO engraver will match cylinders engraved on a Hell engraver.

Collage and OHIO engravers work together to enhance quality and productivity. Collage and Hybrid Engraving produce the highest quality cylinders with sharp edges even in tone on tone and superb ink release from the traditional-looking cells.

New features in 4.3


Note: Collage Client-Server using Linux server has been deprecated starting with version 4. Now, a Collage client will connect to a Collage-S computer.


OHIO Gravure Technologies in Dayton, Ohio USA designs and manufactures advanced equipment for the global gravure printing market. The Engineering, Software Development, and Manufacturing groups work to provide innovative solutions to improve quality and productivity, such as the award-winning Hybrid Engraving System. Our engineering specialty since 1980 is our sub-micron accurate cutting system (Vision engrave head). We provide installation and support for our electromechanical engravers and the prepress layout software Collage for gravure printing.
